晶振信息：
ITEMS/TYPE | AS5 |
Frequency Range | 8~125MHz |
Vibration Mode | Fundamental |
Load Capacitance | 20pF, or specify |
Frequency Tolerance (at 25℃) | ±20ppm, or specify |
Frequency Stability Over Operating Temperature Range | ±150ppm Max. |
Operating Temperature Range | -40~+125℃ or specify |
Drive Level | 300μW Max. (10 μW typical) |
Storage Temperature Range | -40~+125℃ |
Reliability Standard | AEC-Q200 |

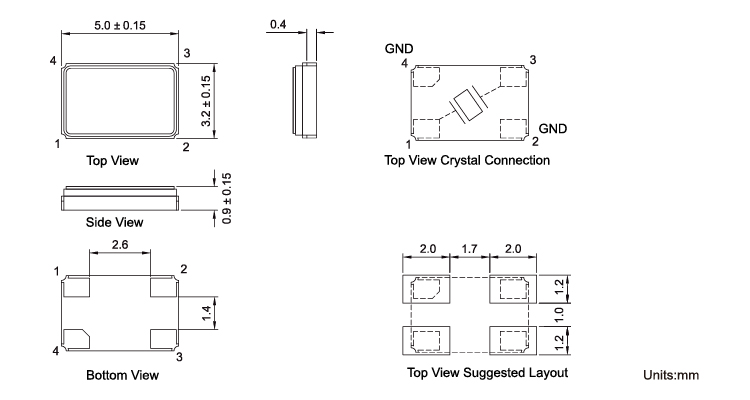

晶振尺寸：
