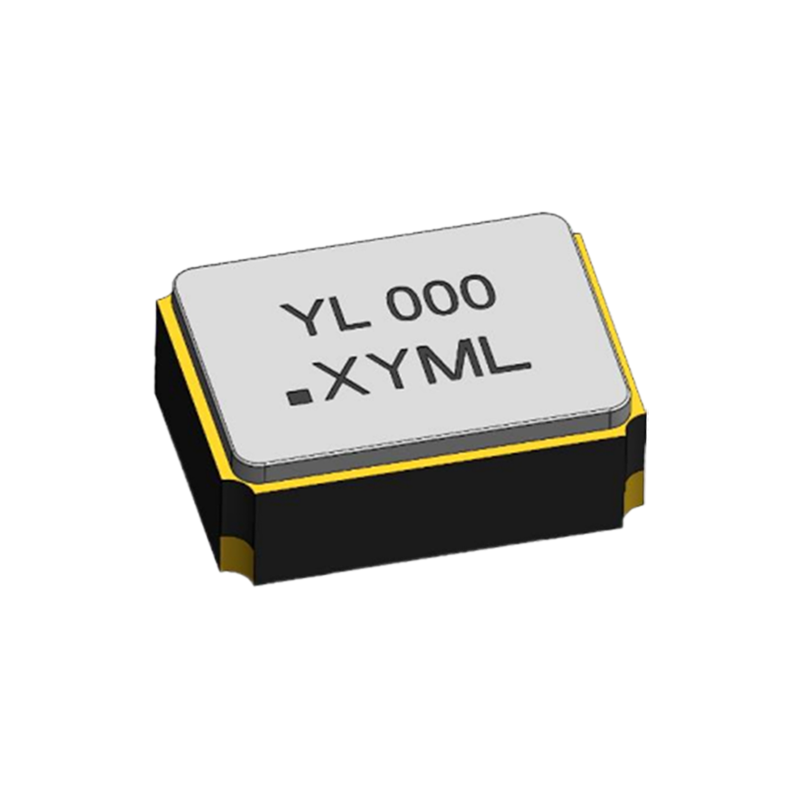

TCXO2520温补晶振参数：
| Items | Parameters |
| Frequency range | 10MHz to 48MHz |
| Supply voltage (VDD) | 1.68V to 3.63V |
| Current Consumption |
1.5mA Max. (Below 26 MHz) 2.0mA Max. (Above 26 MHz) |
| Initial frequency tolerance at 25°C (Before reflow) | ±1.0ppm Max. |
| Initial frequency tolerance at 25°C (After reflow) | ±1.5ppm, ±2.0ppm Max. |
| Output type | Clipped sine wave (10kΩ//10pF output load) |
| Output level | 0.8 V p-p Min. |
| Start-up time | 2.0ms Max. |
| Operating temperature range | -40°C to +85°C |
| Storage temperature range | -40°C to +125°C |
| Frequency stability vs. operating temperature (Ref. 25°C) | ±0.5ppm, ±2.0ppm Max. |
| Frequency stability vs. ±5% supply voltage variation | ±0.1ppm Max. |
| Frequency stability vs. ±5% load variation | ±0.1ppm Max. |
| Aging | ±1.0 ppm/year Max. |
| AFC voltage control function | Available for VC-TCXO |

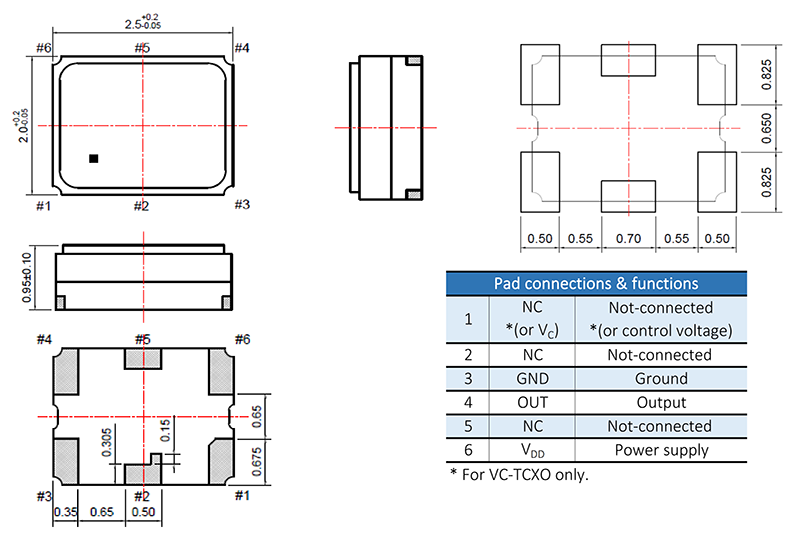

TCXO2520温补晶振尺寸图：
| 图片 | 类型 | 型号 | 封装尺寸 | 频率 | 电压/负载 | 频差 | 工作温度 | 样品申请 | |
|---|---|---|---|---|---|---|---|---|---|
 |
TCXO1612温补晶振1T系列 | 1T | 1.6x1.2x0.6mm | 19.2MHz-52MHz | 1.68V~3.63V or specif | ±2ppm or specif | -40℃~+85℃ or specif |  |
浏览 |
 |
TCXO2016温补晶振9T系列 | 9T | 2.0x1.6x0.8mm | 10MHz~52MHz | 1.68V~3.63V or specif | ±2ppm or specif | -40℃~+85℃ or specif | |
浏览 |
 |
TCXO3225温补晶振3T系列 | 3T | 3.2x2.5x1.2mm | 12.8~40MHz | 1.68V~3.63V or specif | ±2ppm or specif | -40℃~+85℃ or specif | |
浏览 |
