OSC2520有源晶振参数：
| Items | Parameters |
| Frequency range | 32.768kHz, 1 to 80MHz |
| Oscillation mode | Fundamental or 3rd Overtone |
| Output type | CMOS |
| Supply voltage (V DD ) | 1.8V, 2.5V, 2.8V, 3.3V |
| Operating temperature range | -20 to +70°C, -40 to +85°C |
| Storage temperature range | -55 to +125°C |
| Frequency stability vs. operating temperature range | ±25ppm, ±30ppm, ±50ppm |
| Current consumption | 20mA Max. |
| Duty cycle | 40 to 55% , 40 to 60% |
| Rise/fall time | 40ns Max. (32.768kHz), 8ns Max. (others) |
| Output level V OH | 0.9 x V DD Min. |
| Output level V OL | 0.1 x V DD Max. |
| Phase jitter | 1.0ps Max. |
| Start-up time | 10ms Max. |
| Aging at 25°C | ±5ppm /year Max. |

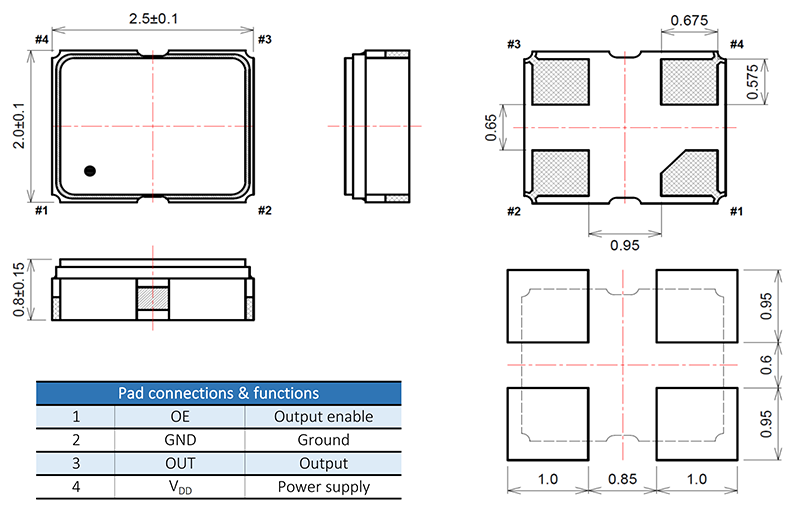

OSC2520有源晶振尺寸：
