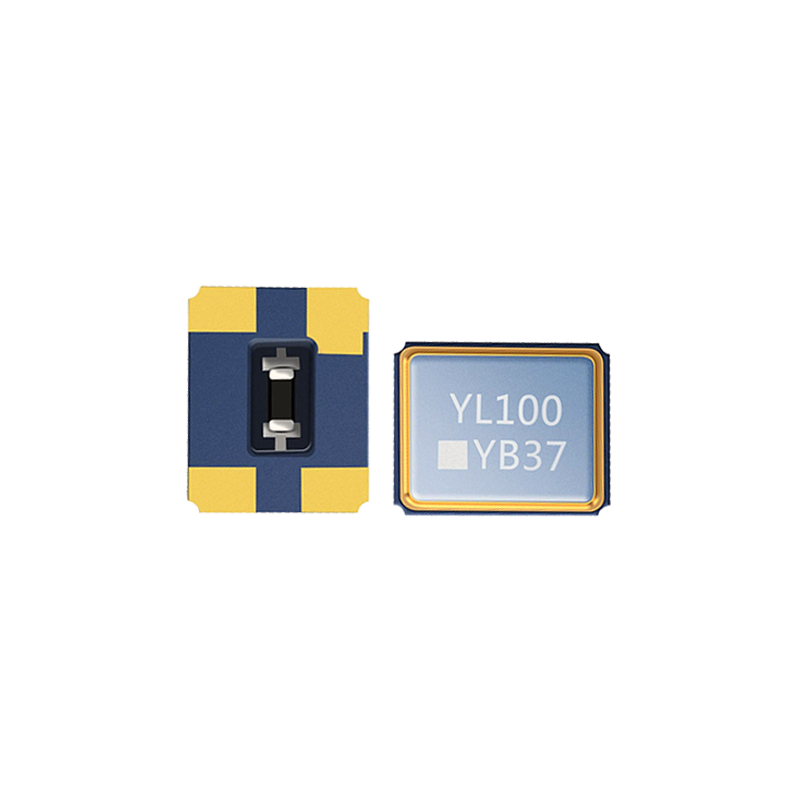

| ITEMS/TYPE | 9Z | |
| Frequency range | 19.2/76.8 MHz | 26 MHz |
| Overtone Order | Fundamental | Fundamental |
| Frequency tolerance at 25℃ | ±10 ppm | ±10 ppm |
| Operating temperature range and frequency stability | See Table 1 | See Table 1 |
| Equivalent series resistance | See Table 2 | See Table 2 |
| Shunt capacitance | 1.8 ~ 3.1 pF | 3 pF Max or specify |
| Load capacitance | 7 pF | 7, 9 pF |
| Drive level | 10 ~ 100 μW | 100, 150 μW MAX. |
| Insulation resistance (at DC 100V) | 500 MΩ Min. | 500 MΩ Min. |
| Thermistor Resistance | 100 kΩ ± 1% | 100 kΩ ± 1% |
| Thermistor B-constant | 4250 kΩ ± 1% | 4250 kΩ ± 1% |
| Aging at 25℃ | ±0.7 ppm / year Max. | ±0.7 ppm / year Max. |
| Storage temperature range | -40 ～ +105 ℃ | -40 ～ +105 ℃ |
| Measure instrument | S&A 250B system with PI circuit | |
| 图片 | 类型 | 型号 | 封装尺寸 | 频率 | 电压/负载 | 频差 | 工作温度 | 样品申请 | |
|---|---|---|---|---|---|---|---|---|---|
 |
SMD2016 车规级无源晶振 | 9Y | 2.0x1.6x0.55mm | 16~50MHz | 20pF or specif | ±10ppm or specif | -40～+125℃ or specify |  |
浏览 |
 |
SMD2520 车规级无源晶振 | 2Y | 2.5x2.0x0. 6mm | 12~48MHz | 20pF or specif | ±10ppm or specif | -40～+125℃ or specify | |
浏览 |
 |
SMD3225 车规级无源晶振 | 3Y | 3.2x2.5x0.8mm | 12~48MHz | 20pF or specify | ±10ppm or specif | -40～+125℃ or specif | |
浏览 |
 |
2016车规级有源晶振9L系列 | 9L | 2.0x1.6x0.74mm | 32.768KHz 1MHz-50MHz | 1.8V-3.3V or specif | ±50ppm or specif | -40℃~+125℃ or specif | |
浏览 |
 |
2520车规级有源晶振2L | 2L | 2.5x2.0x0.8mm | 32.768KHz 1MHz~50MHz | 1.8 V~3.3V or specif | ±50ppm or specif | -40～+125℃ or specif | |
浏览 |
 |
3225车规级有源晶振3L | 3L | 3.2x2.5x1.0 mm | 32.768KHz 1MHz~50MHz | 1.8 V~5V or specif | ±50ppm or specif | -40～+125℃ or specif | |
浏览 |
 |
5032车规级有源晶振5L | 5L | 5.0x3.2x1.2mm | 1MHz-50MHz | 1.8 V~5V or specify | ±50ppm or specify | -40～+125℃ or specify | |
浏览 |
 |
7050车规级有源晶振7L | 7L | 7.0x5.0x1.3mm | 1MHz-50MHz | 1.8V~5V or specif | ±50ppm or specif | -40℃~+125℃ or specif | |
浏览 |
